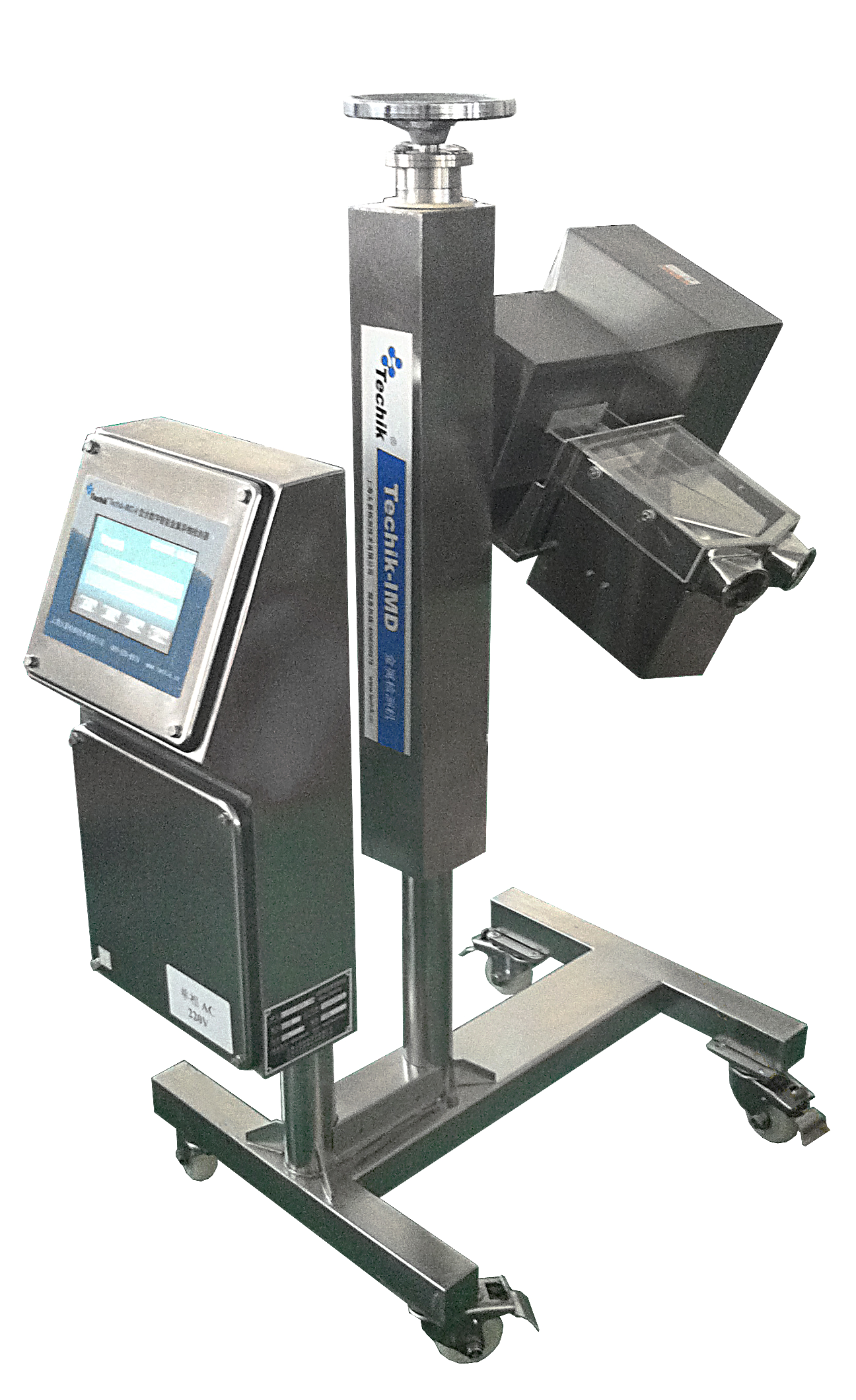

Techik IMD-I-M Pharmaceutical Metal Detector
Product Description
Suitable for being installed after some pharmaceutical equipments like the tablet press machine, the capsule filling machine and the sieve machine. High sensitivity and stability detection of Ferrous metal(Fe),Non-Ferrous metals (Copper, Aluminum) and Stainless Steel.
Metal Detector IMD-I-M Series
- High frequency running mode, greatly enhance the detection sensitivity
- Accurate and efficient rejecter, less material loss
- In line with pharmaceutical standards and regulations, in accordance with the GMP standard
- Touch-screen displays, easy to set up and operate
- Adjustable height and angle of the device, easy to be moved casters
Specifications
| Model | IMD-I-M | |||
| Detection Width | 70mm | 100mm | 150mm | |
| Detection Height | 20mm | 25mm | 35mm | |
| Sensitivity | Fe | ≥Φ0.6mm | ||
| SUS304 | ≥Φ0.8mm | |||
| Display Mode | TFT Touch Screen | |||
| Operation Mode | Touch Input | |||
| Product Storage Quantity | 99kinds | |||
| Channel Material | Food Grade Plexiglass | |||
| Rejecter | Automatically Rejected | |||
| Power Supply | AC220V (Optional) | |||
| Pressure Requirements | 0.5Mpa ≥ | |||
| Main Material | SUS304 | |||
