Band Sealers

Packaging high volumes of food? Band sealers give you a fast, strong and consistent seal and a highly efficient packaging process. They use a conveyor belt to continuously seal bags as they pass through the machine. A band sealer is a significant investment for your business, so it’s important to choose one that is built to last. Ask us for expert advice on the right band sealer for your products.

Our customers commonly use band sealers to seal coffee pouches as well as bags of food like chips, nuts, and dried fruit.

What are the different types of band sealers?

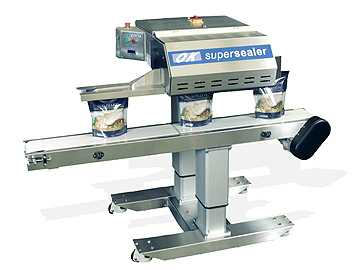

Band sealers, also known as continuous heat sealers, are packaging machines used to seal bags or pouches with a continuous band of heat. They come in two types: vertical or horizontal.

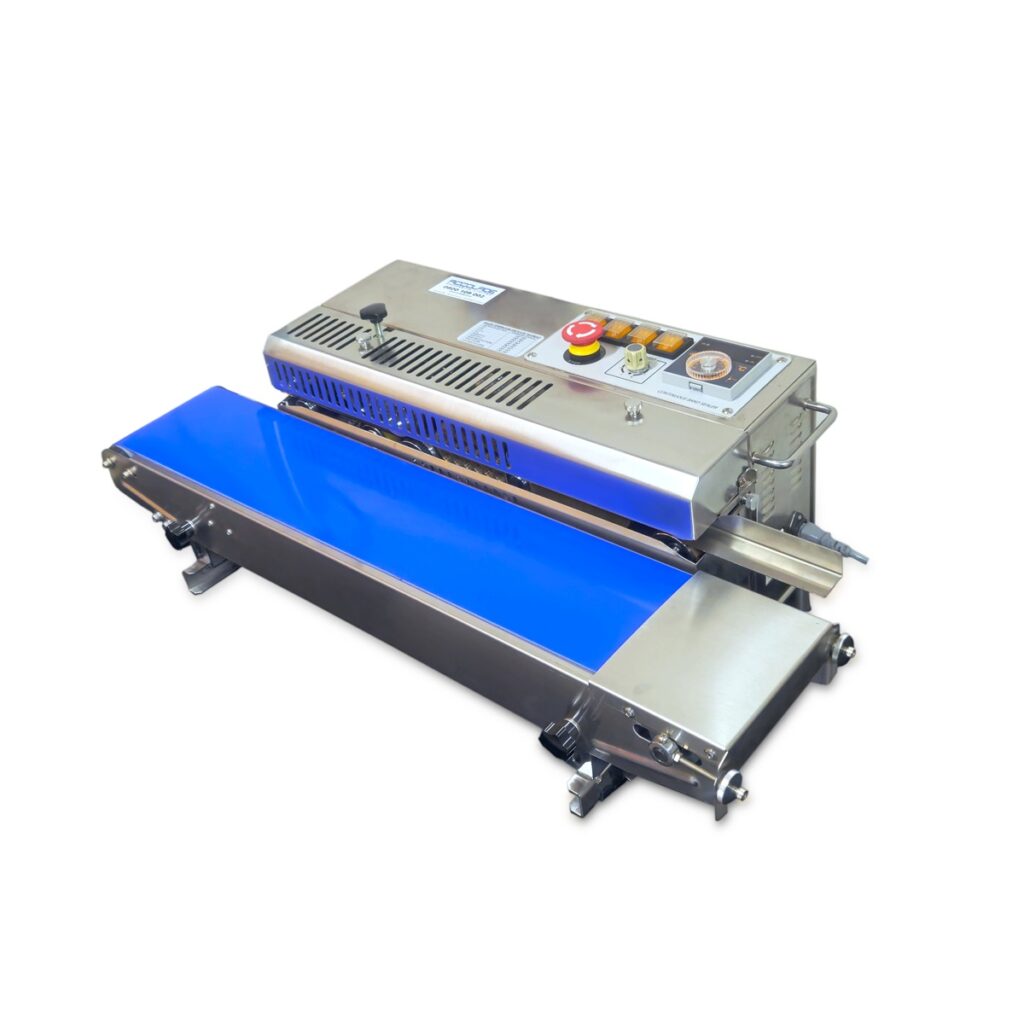

Horizontal band sealers seal bags or pouches in a horizontal orientation. The bags are fed horizontally through the sealer, and the sealing band is positioned horizontally. Horizontal band sealers are suitable for sealing flat or horizontally filled bags.

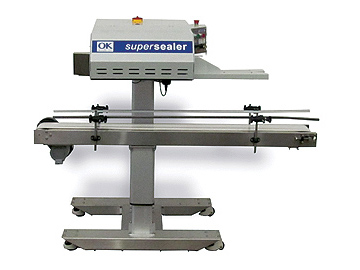

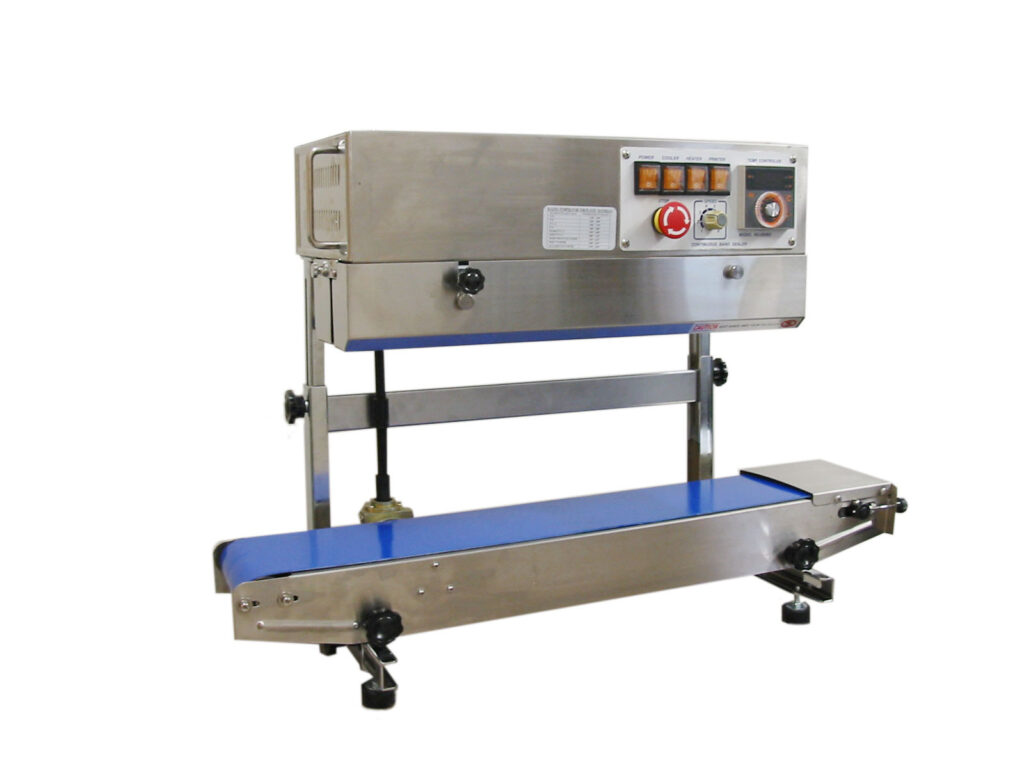

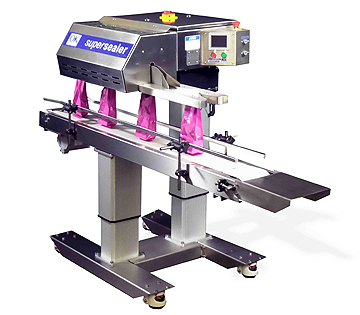

Vertical band sealers seal bags or pouches in a vertical orientation. The bags are fed vertically through the sealer, and the sealing band is positioned vertically. These sealers are ideal for sealing vertically filled bags or pouches.

How do band sealers seal a bag?

There are four types of sealing methods:

  1. Continuous band sealer: A conveyor belt feeds bags or pouches through the sealer continuously. It’s efficient for high-volume production.
  2. Induction band sealer: Uses electromagnetic induction to generate heat. It’s commonly used for sealing foil or foil-lined packaging.
  3. Impulse band sealer: Uses a heating element that rapidly heats up when activated. The heat is applied to the seal area for a specific duration, creating a seal.
  4. Pneumatic band sealer: Uses pneumatic pressure to create the seal. It’s often used for sealing bags or pouches containing liquid or powdered products.

How do I select the right band sealer for my packaging needs?

Choosing the right band sealer depends on factors like the type and size of bags or pouches, your production rate, sealing material, and specific requirements of your packaging operation. If you’re unsure which is right for your products, ask us and we can help you identify the most suitable band sealer for your needs.

Can band sealers handle different bag sizes and materials?

Yes, most band sealers are designed to handle various bag sizes and materials, such as polyethylene (PE), polypropylene (PP), laminates, or foil-lined bags. However, it’s essential to ensure that the band sealer you choose is compatible with the specific bag sizes and materials you plan to use.

How do I achieve consistent and reliable seals with a band sealer?

You need to set the appropriate temperature and speed settings on the band sealer based on the bag material. Conducting initial tests with sample bags can help determine the optimal settings. Additionally, ensuring that the bags are properly positioned and the sealing area is clean and free of debris or moisture contributes to consistent seals.

Can band sealers accommodate printing or labeling on the seal area?

Some band sealers come with an integrated printing system that can print information like date codes, batch numbers, or logos directly on the seal area while sealing the bags or pouches. However, not all band sealers have this feature, so it’s important to check with the supplier if printing capability is required.

How do I maintain and clean a band sealer?

Regular maintenance and cleaning are essential for optimal performance and longevity of a band sealer. Follow the manufacturer’s guidelines for maintenance tasks such as lubrication, belt or conveyor cleaning, and replacement of worn parts.

Can you control the temperature of a band sealer?

Yes, temperature control is essential for achieving a proper seal. Our band sealers have precise temperature control, so you can adjust the heat according to the specific packaging material you’re using. Many of our sealers also have temperature sensors to monitor and maintain the sealing temperature.

What add-ons do band sealers come with?

If you need additional features, most of our band sealers can come with add-ons that enhance efficiency and convenience, such as adjustable sealing pressure, digital controls, counter options, or printing capabilities. If you’re not sure which features are important for your specific business needs, ask us for advice.

We’re committed to providing our customers with the best possible products and service. That’s why we stand behind everything we sell. If you have any questions, or if you need help selecting the right products for your needs, just ask. Our team of experts is always here to help.

How we can help you

1. Consult Tell us about your business, your food products, and how you want to package them.
2. Advise We’ll recommend the best packaging machines to suit your business.
3. Install You get the right equipment for the job. We can install it and train your team to use it safely.
4. Support We'll support you with technical advice, servicing, maintenance, and printing.
