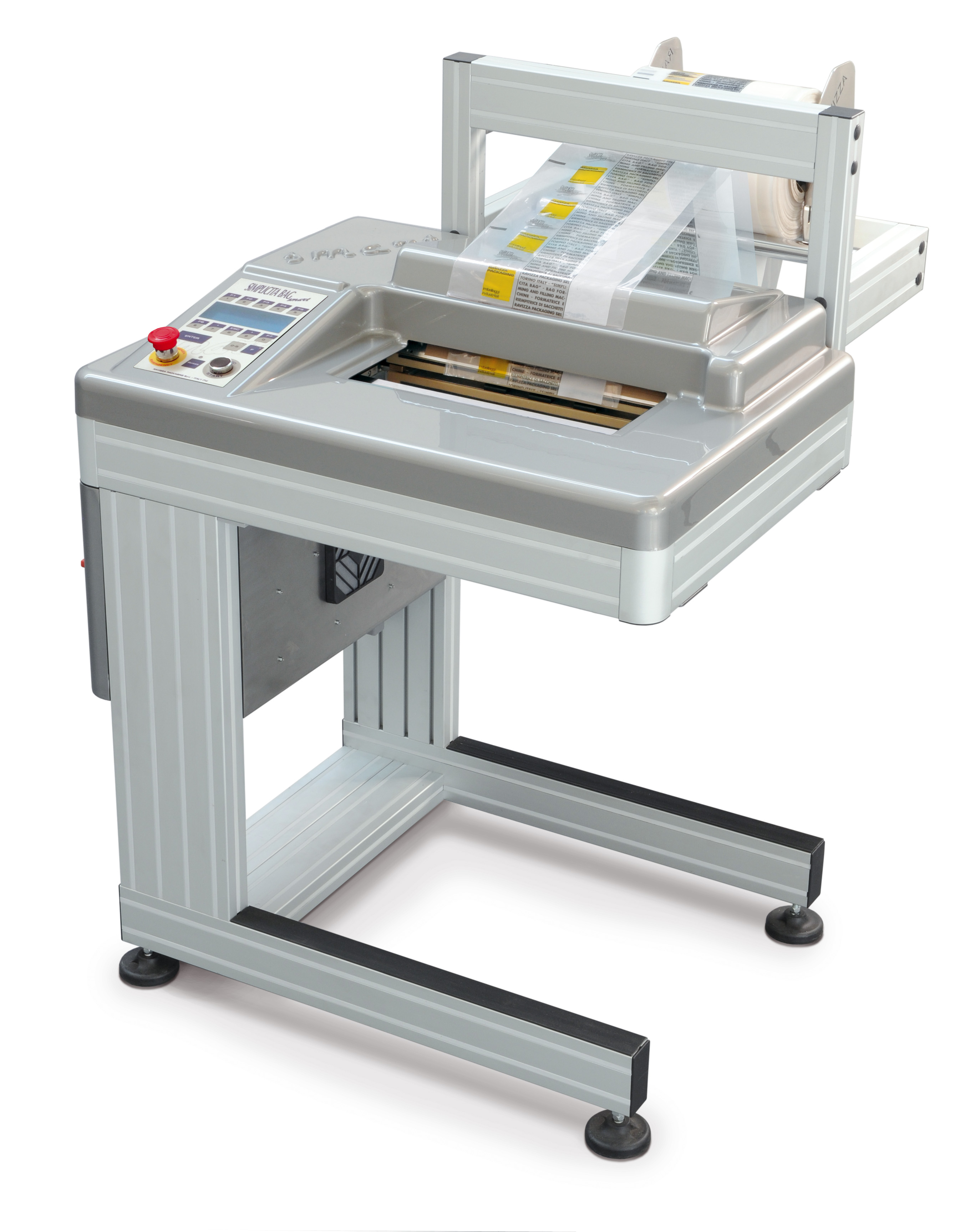

Simplicita Smart Bag

Product Description

Starting from a reel of lay flat tubing, Simplicita Bag Smart produces the bags, which are presented with the open face up, ready for either manual/semi automatic or fully automatic loading. Once the product to be packed has been loaded, the machine seals the bag and presents another open bag for the next product.

• Reel replacement less than 60 seconds
• Machine cycle speed: Up to 42 bags per minute
• (Subject to bag size and items to be packed)
• Adjustable mouth opening
• Bag exit from any direction
• Machine standard working height 870mm
• Memory store and recall of machine settings (such as bag type, bag length, temperature,
• sealing times, etc.)
• Aluminium extruded structure
• with metallic grey ABS material cover (all colour on request)
• Possibility to produce empty bags for hand packing
• Minimised product fall
• Possibility to place hands direct into bag (subject to bag size)
• Easy to move (castors on request)
• Easy to use multi language control panel with prompts
• and password protection to three levels
• Operator can load standing or sitting
• Operator friendly diagnostics

Technical Data

• Film Layflat tubing
• Thickness film (under approval by Ravizza Packaging tech. dept.) 30/120 μ
• Reel width (under approval by Ravizza Packaging tech. dept.) 40/400 mm
• Bag length 30 mm/infinite
• Reel diameter 300 mm
• Reel weight 25 Kg max
• Power supply 220/240 V single phase
• Air supply pressure 5/7 bar (I.D. pipe 10mm)
• Machine size 820 x 1002 x h1144 mm
• Machine weight 100 Kg
