Techik IMD-I-B Series
Product Description
Professional metal detection in a bakery environment. High sensitivity and stability for detection of Ferrous metal (Fe),Non-Ferrous metals (Copper, Aluminum) and Stainless steel.

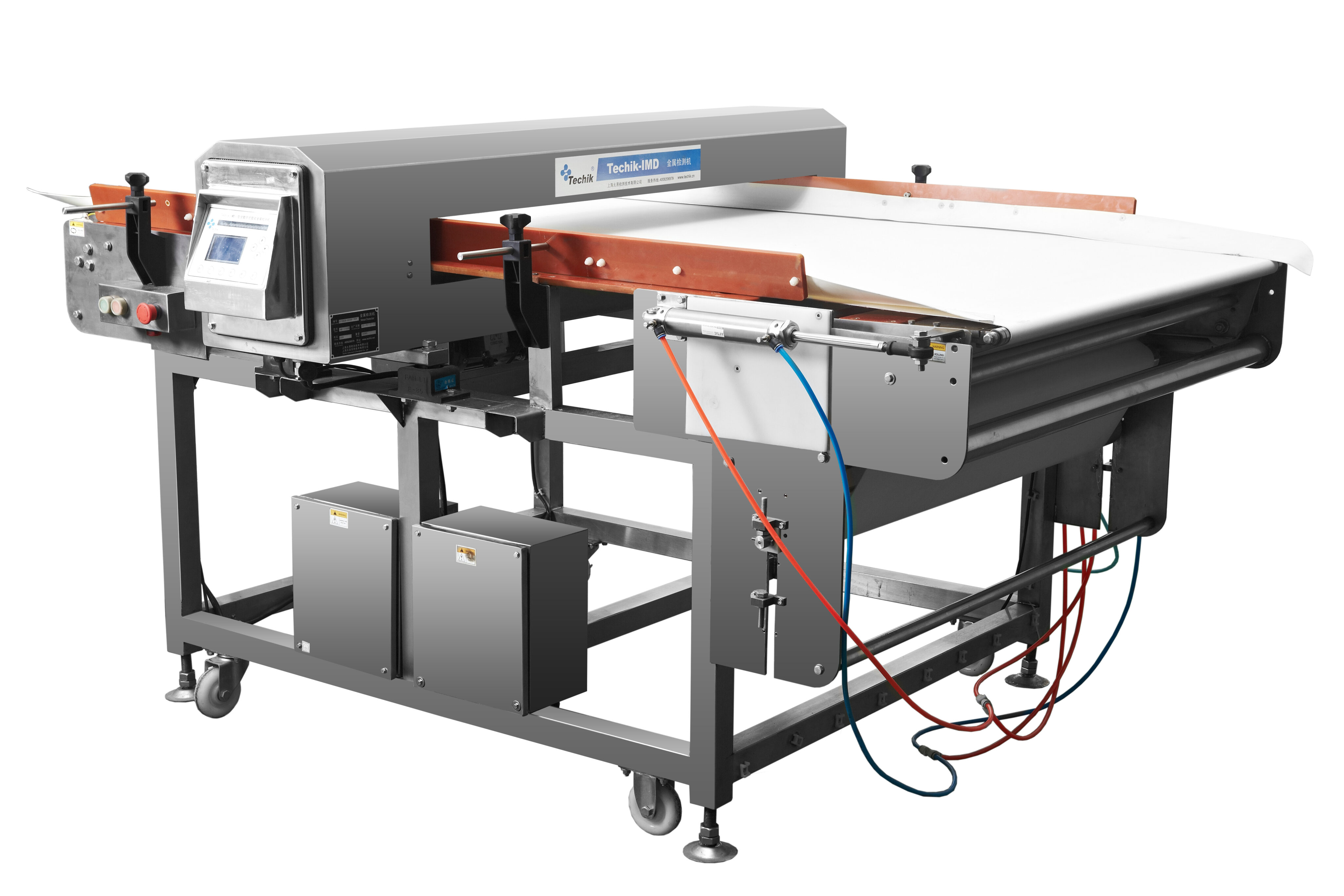

Metal Detector IMD-I-B Series
- Seamless connection for integration with the various types of production lines
- Unique design for product rejection, incorporating pneumatic cylinders to pull the conveyor belt back and drop the reject down without disturbing the preceding products.
- High temperature resistance
- Simple to disassemble and easy to clean
Specifications
| Model | IMD-I-B | ||
| Specifications | 60、80、100、120 | ||
| Detection Width | 600mm、800mm、1000mm、1200mm | ||
| Detection Height | 50~80mm | 200mm | |
| Sensitivity | Fe | Φ0.8mm | Φ1.2mm、 |
| SUS304 | Φ1.5mm | Φ2.0mm、 | |
| Belt Width | 560mm、760mm、960mm、1160mm | ||
| Conveyor Belt | Food Grade PVC (PU and Chain Conveyor optional) | ||
| Belt Speed | Fixed 15m/min (Variable speed is optional) | ||
| Rejecter | Pneumatic Retracting Band Type | ||
| Power Supply | AC220V (Optional) | ||
| Main Material | SUS304 | ||
