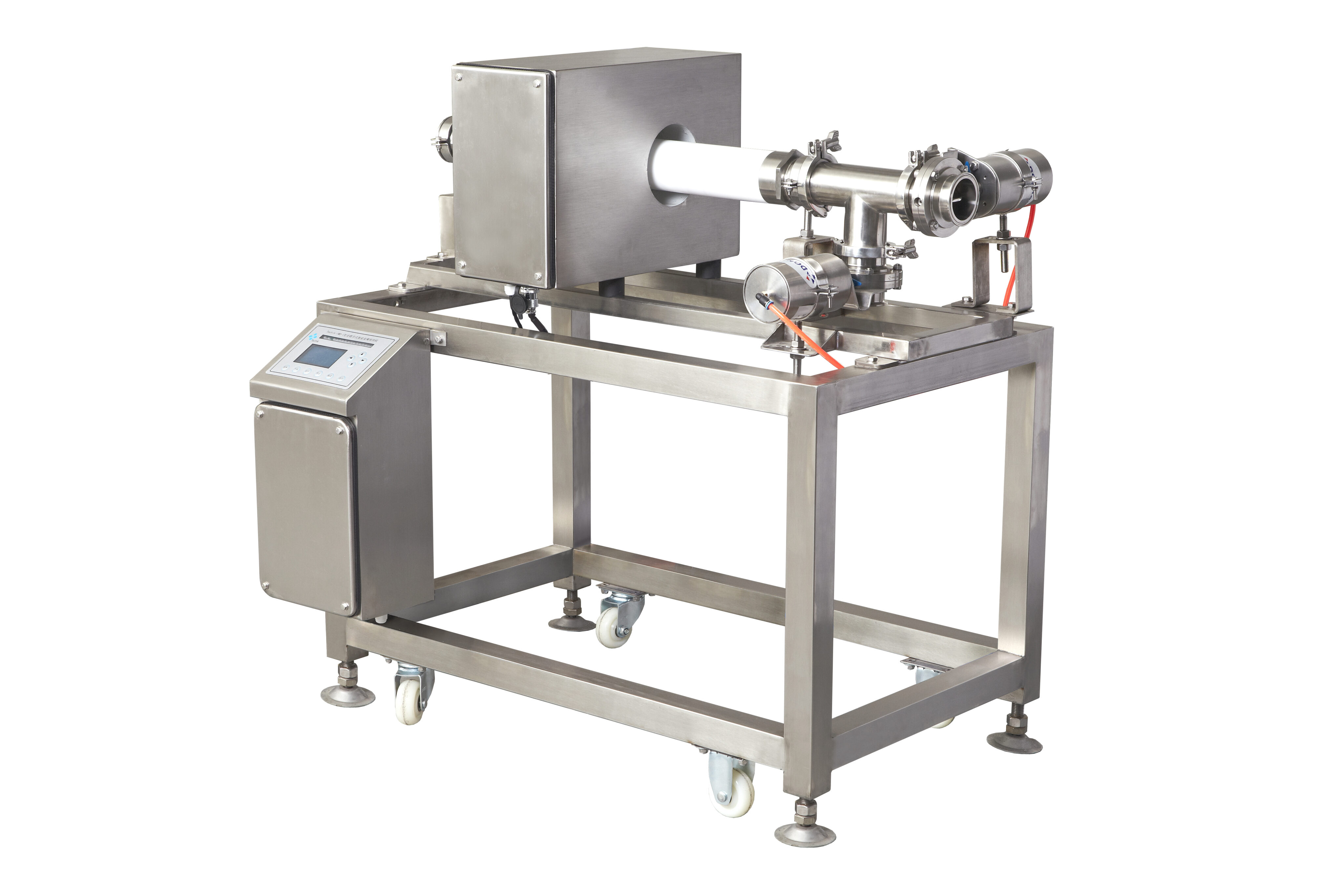

Techik IMD-I-L Metal Detector For Liquids
Product Description
High stability and sensitivity, suitable for the pump pressure fluid and semi-fluid product, sauce, liquid etc.
Metal Detector IMD-I-L Series
- Automatic product identification technology, powerful ability to suppress product effect
- Easy to be integrated in existing sealed pipe system
- Compact design, small occupied pipe length
- Teflon food grade inner tube, high temperature and pressure resistance
- Fast and accurate rejection valve, not only suitable for the high speed fluid, but also for slow viscous products, less material loss
Specifications
| Model | IMD-I-L | ||||||
| Detection Diameter (mm) | Alarm Mode | Pressure Requirements | Power Supply | Main Material | Inner Pipe Material | Sensitivity1 Φd (mm) | |
| Fe | SUS | ||||||
| 50 | Automatic Valve Rejecter | 0.5Mpa≥ | AC220V (Optional) | Stainless Steel (SUS304) | Food Grade Teflon Tube | 0.5 | 1.2 |
| 63 | 0.6 | 1.5 | |||||
| 80 | 0.8 | 2.0 | |||||
Note: The technical specifications above are the result of sensitivity testing with a known test sample. The sensitivity would be affected by the type of products being detected and working conditions.
How we can help you
1. Consult
Tell us about your business, your food products, and how you want to package them.
2. Advise
We’ll recommend the best packaging machines to suit your business.
3. Install
You get the right equipment for the job. We can install it and train your team to use it safely.
4. Support
We'll support you with technical advice, servicing, maintenance, and printing.
